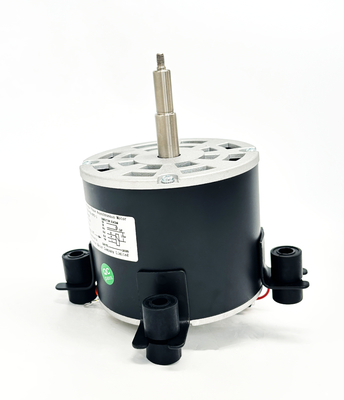

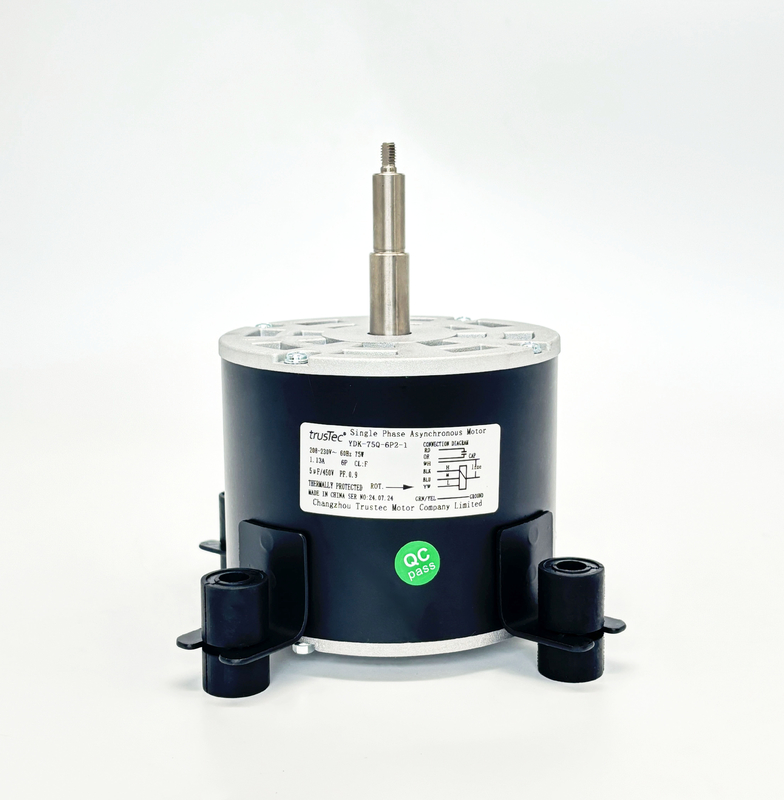

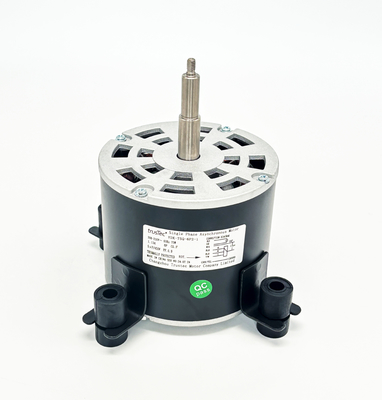

42 Rahmen/120mm Bläsermotor - 75W 208-230V 60HZ
Herkunftsort:Changzhou, China
Markenname:trusTec
Zertifizierung:CE
Modellnummer:YDK-75Q-6P2-1
Mindestbestellmenge:200 Stk
Preis:Negotiable (FOB/CNF/CIF)
Zahlungsbedingungen:T/T, L/C
Lieferfähigkeit:100,000 Stück pro Monat
Tags:
Produktdetails
Hervorheben:
208-230V-Bläsermotor
,120 mm-Bläsermotor
,75 Watt Bläsermotor
Product:
Direktantrieb-Lüftermotor
Frame Size:
42 Rahmen/120 mm
Motor Type:
Permanent geteilter Kondensator
Supply Voltage:
220/230V
Enclosure Type:
OAO (Offene Luft)
Supply Frequency:
60 Hz
Thermal Overload:
mit einer Leistung von mehr als 50 W
Current:
1.13A
Phase:
Einzelphase
Output Power:
75W
Mounting Orientation:
Alle Engel
Shaft Diameter:
1/2" / 1,72 mm
Insulation Class:
Klasse F
Lead Length:
27.5" / 700 mm
Mounting:
Stamm montiert alle Engel
Poles:
6P
Bearings:
Kugellager
Max. Ambient Temperature:
40°C/104°F
Rotation:
CCW-SE
Capacitor:
5 uF/370V
Produktbeschreibung
