Name: 48-Rahmen-Direktantrieb Wechselstrom-Bläsermotor - 3/4 PS 1075 RPM/3SPD 115V 60HZ
Brand: Changzhou Trustec Company Limited
SKU: YDK-550-6B57-UNB
Price: 125.00 USD
Availability: InStock

Startseite Produkte hvac-Lüftermotor

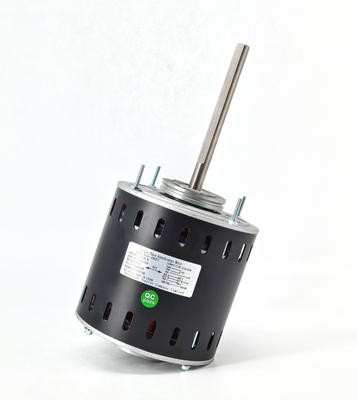

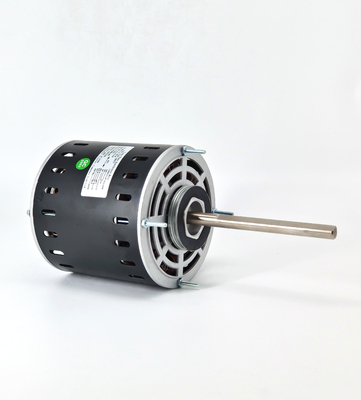

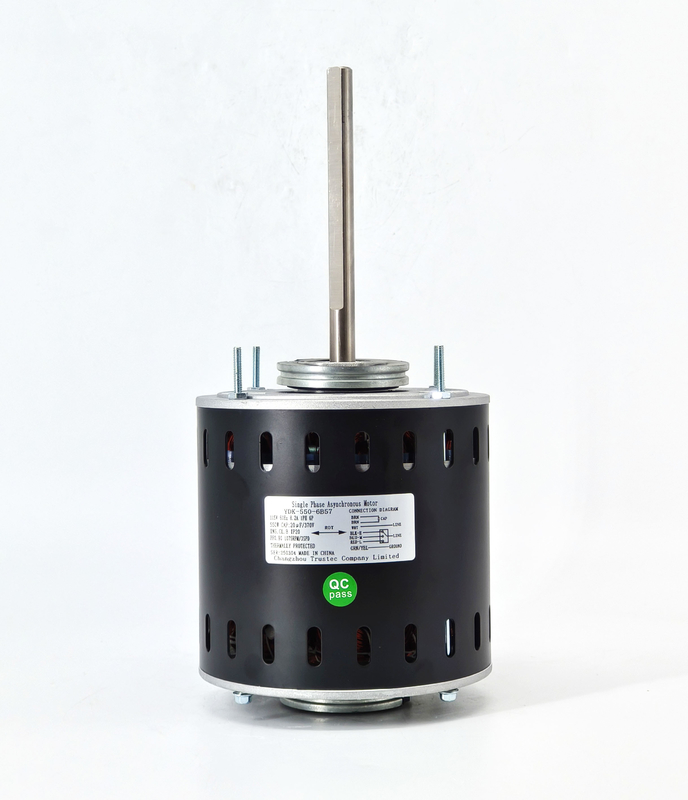

48-Rahmen-Direktantrieb Wechselstrom-Bläsermotor - 3/4 PS 1075 RPM/3SPD 115V 60HZ

48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ

Produktdetails:

Place of Origin:	Changzhou, China
Markenname:	trusTec
Zertifizierung:	CE、UL529388
Model Number:	YDK-550-6B57-UNB

Zahlung und Versand AGB:

Minimum Order Quantity:	200 pcs
Preis:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

Kontakt

Ausführliche Produkt-Beschreibung

Product:	Direct Drive Blower Motor	Frame:	Nema 48
Motor Type:	Permanent Split Capacitor	Supply Voltage:	115V
Enclosure Type:	OAO (Open Air Over)	Supply Frequency:	60Hz
Thermal Overload:	Equipped with an Automatic Thermal Overload	Current:	8.2A
Phase:	Single Phase	Output HP:	3/4HP
Shaft Flats:	One flat	Rated Speed:	1075RPM/3SPD
Mounting Orientation:	All angle	Capacitor:	20uF/370V
Mounting:	Stud Mounting All Angel	Shaft Diameter:	1/2" / 12.7mm
Insulation Class:	Class B	Shaft Length:	5.75" / 146.05mm
Bearings:	Ball Bearing	Flat Length:	4.6" / 116.84mm
Max. Ambient Temperature:	40℃/104℉	Lead Length:	22.8" / 580mm
Rotation:	Reversible	Screw Length:	1.62" / 41.1mm
Pole:	6P	Motor Shell Length:	5.48" / 139.2mm
PF:	0.9
Hervorheben:	3/4 PS Wechselstrom-Bläsermotor , 1075 RPM Wechselstrom-Bläsermotor , 115V 60HZ Wechselstrom-Bläsermotor
