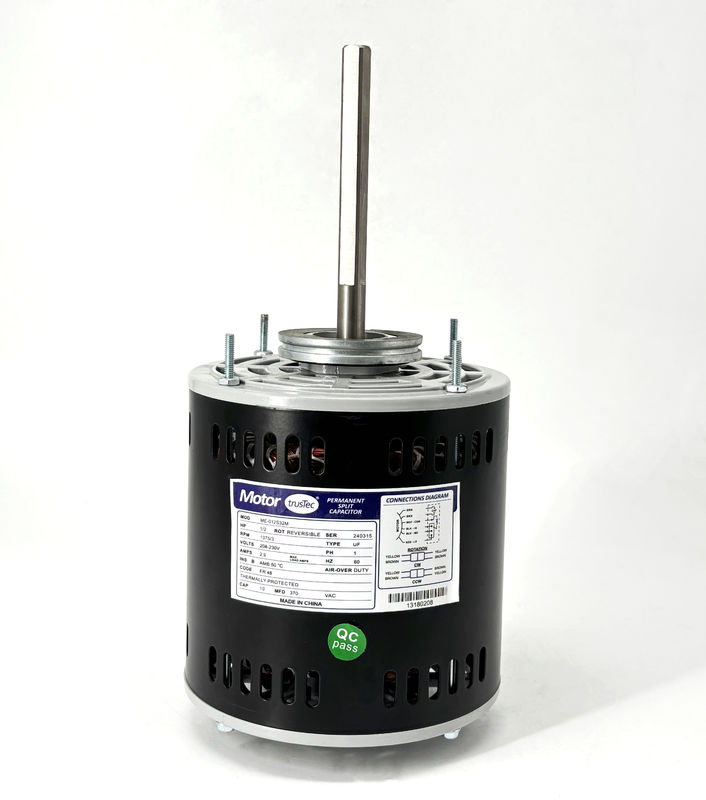

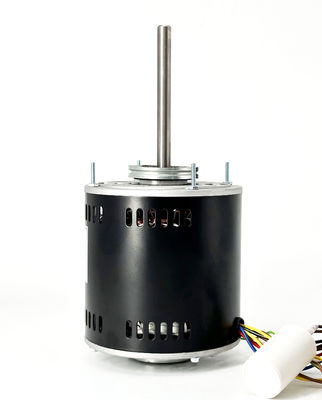

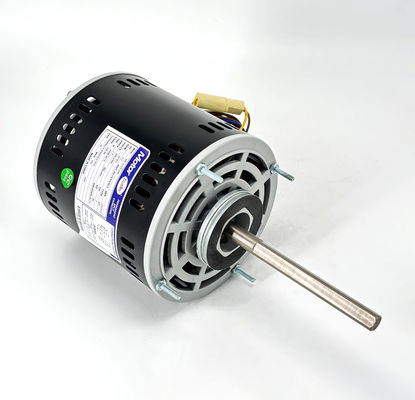

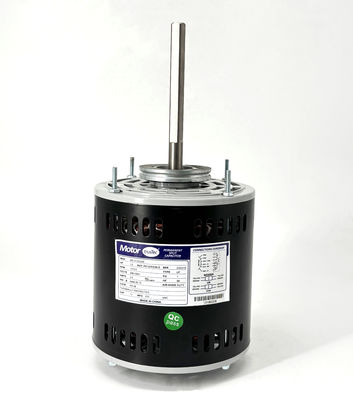

48-Rahmen-Direktantrieb-Bläsermotor - 1/2PS 1075RPM/3SPD 208-230V 60HZ
Herkunftsort:Changzhou, China
Markenname:trusTec
Zertifizierung:CE、UL529388
Modellnummer:YDK-375-6B15-VPS
Mindestbestellmenge:200 Stück
Preis:Negotiable (FOB/CNF/CIF)
Zahlungsbedingungen:T/T, L/C
Lieferfähigkeit:100,000 Stück pro Monat
Tags:
Produktdetails
Hervorheben:
3SPD-Direktantriebs-Bläsermotor
,208-230V-Direktantriebsbläsermotor
,1/2 PS Direktantriebs-Bläsermotor
Product:
Gebläsemotor
Frame:
Nema 48
Motor Type:
Permanent geteilter Kondensator
Supply Voltage:
208-230V
Enclosure Type:
OAO ((Open Air Over))
Supply Frequency:
60 Hz
Thermal Overload:
mit einer Leistung von mehr als 50 W
Current:
2.9A
Phase:
Einzelphase
Output HP:
1/2 PS
Shaft Flat:
Rechtswinkel flach
Speed:
1075U/min/3SPD
Mounting Orientation:
Alle Winkel
Capacitor:
10 uF/370V
Insulation Class:
Klasse B
Pole:
6P
Bearings:
Kugellager
Shaft Diameter:
12.7mm/0.5"
Rotation:
CW/CCW
Flat Length:
101.6mm/4"
Max. Ambient Temperature:
50°C/122°F
Lead Length:
24.01"/610mm
Motor Shell Length:
142mm/5,59"
Screw Length:
14 mm/0,55"
Produktbeschreibung
Produktübersicht
