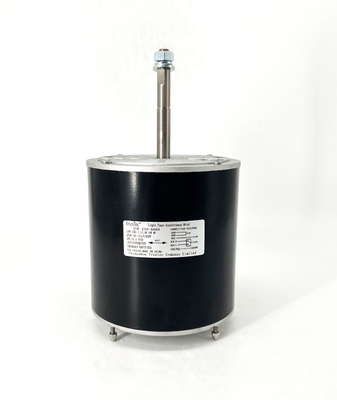

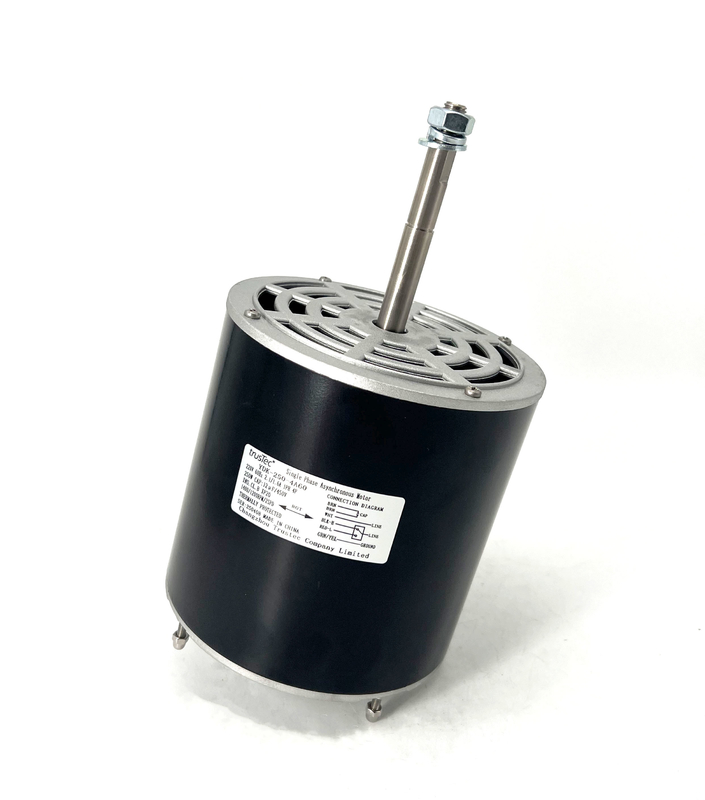

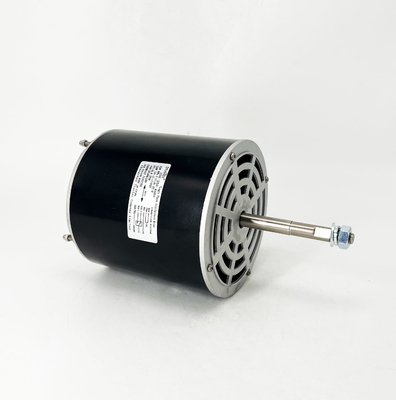

48-Rahmen-Bläser-Ventilator-Motor - 1/3HP 220V 60HZ 1400/1200RPM
Herkunftsort:Changzhou, China
Markenname:trusTec
Zertifizierung:CE、UL529388
Modellnummer:YDK-250-4A60-BMF
Mindestbestellmenge:200 Stück
Preis:Negotiable (FOB/CNF/CIF)
Zahlungsbedingungen:T/T, L/C
Lieferfähigkeit:100,000 Stück pro Monat
Tags:
Produktdetails
Hervorheben:
1/3-PS-Bläser-Ventilator-Motor
,220 V-Blowerventilatormotor
,1200 RPM Bläserventilatormotor
Product:
Gebläsemotor
Frame:
48 Rahmen/143 mm
Motor Type:
Permanent geteilter Kondensator
Supply Voltage:
220V
Enclosure Type:
OAO (Open Air Over)
Supply Frequency:
60Hz
Thermal Overload:
Ausgestattet mit einer automatischen thermischen Überlastung
Current:
2.1/1.6A
Phase:
Einphasig
Output HP:
1/3PS
Shaft Flat:
Eine Wohnung
Speed:
1400/1200 Drehzahlen pro Minute
Mounting Orientation:
Alle Winkel
Capacitor:
12 uF/450V
Insulation Class:
Klasse B
Pole:
4p
Bearings:
Kugellager
Shaft Diameter:
12,7 mm/0,5 Zoll
Rotation:
CW/CCW
Shaft Length:
95 mm/3,74"
Flat Length:
30 mm/1,181"
Max. Ambient Temperature:
40℃/104℉
Lead Length:
47.24"/1200mm
Motor Shell Length:
146 mm/5,75"
