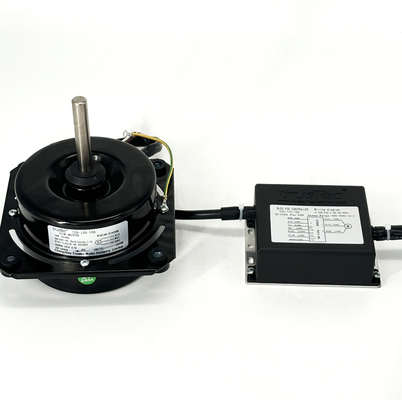

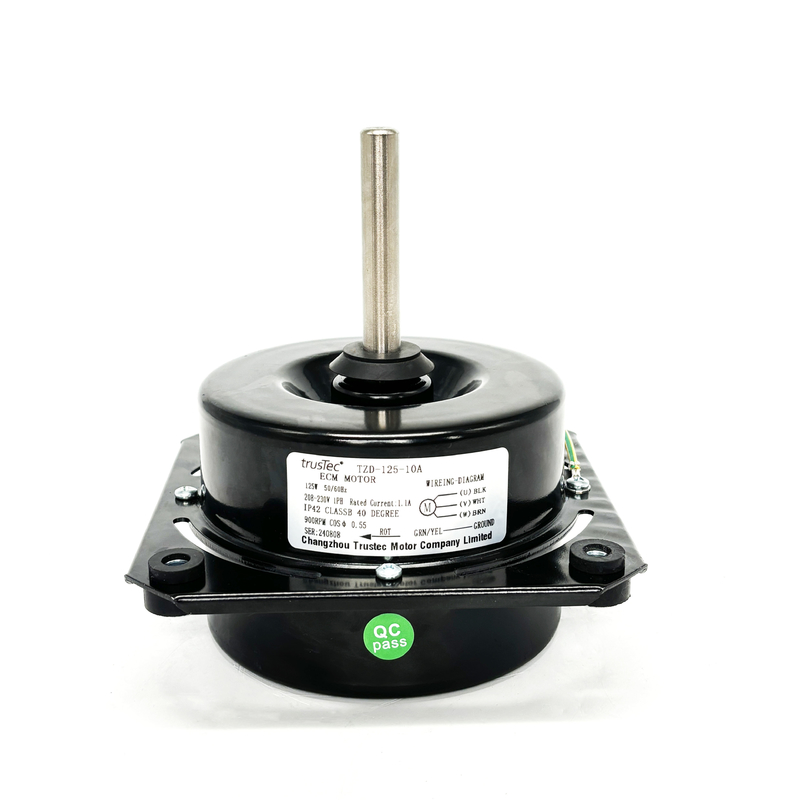

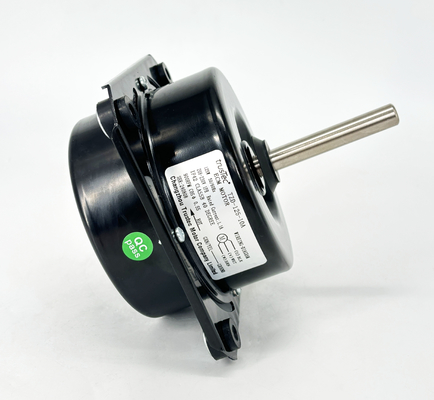

ECM-Motor - 125W 900RPM 220V 50/60HZ 0-10V Drehzahlregelung
Herkunftsort:Changzhou, China
Markenname:trusTec
Zertifizierung:CE
Modellnummer:TZD-125-10A-TVM
Mindestbestellmenge:200 Stück
Preis:Negotiable (FOB/CNF/CIF)
Zahlungsbedingungen:T/T, L/C
Lieferfähigkeit:100,000 Stück pro Monat
Tags:
Produktdetails
Hervorheben:
125 Watt BLDC-Motor
,90 RPM BLDC-Motor
,220 V BLDC-Motor
Product:
Elektronisch kommutierte Motoren (ECM)
Supply Voltage:
220 V
Enclosure Type:
TEAO ((Vollständig geschlossene Luft über)
Supply Frequency:
50/60hz
Thermal Overload:
mit einer Leistung von mehr als 50 W
Current:
1.65A
Phase:
Einzelphase
Output Power:
125W
Mounting:
Stamm montiert alle Engel
Speed:
900rpm
Bearings:
Kugellager
Poles:
10 Pfennig
Mounting Orientation:
Alle Winkel
Shaft Length:
3.04" / 78mm
Insulation Class:
Klasse B
Frame Size:
120 mm
Max. Ambient Temperature:
40°C/104°F
Shaft Diameter:
1/2" / 12,7 mm
Rotation:
CCW ((SE)
Flat Length:
1.99" / 50mm

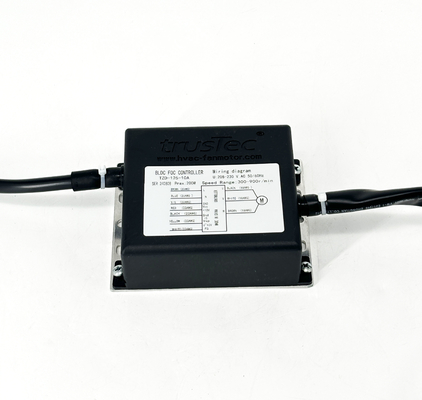

Speed Control:
0-10V VSP
Lead Length:
11.8" / 300 mm
Other:
FG und 10VDC
