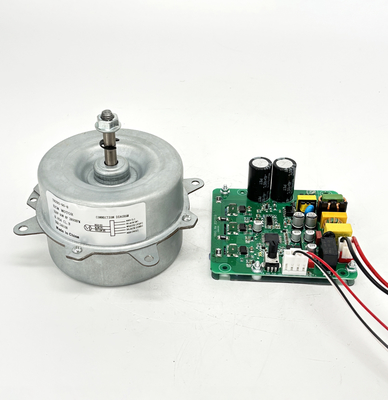

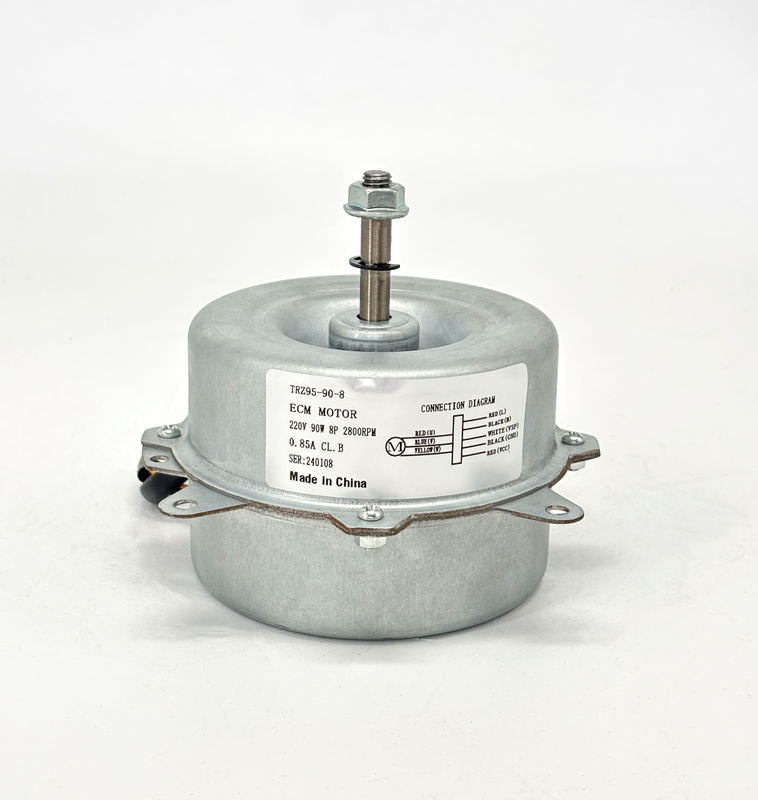

ECM-Motor für Ventilator - 90W 2800RPM 220V 50HZ
Herkunftsort:Changzhou, China
Markenname:trusTec
Zertifizierung:CE
Modellnummer:Der Typ ist TRZ95-90-8.
Mindestbestellmenge:200 Stk
Preis:Negotiable (FOB/CNF/CIF)
Zahlungsbedingungen:T/T, L/C
Lieferfähigkeit:100,000 Stück pro Monat
Tags:
Produktdetails
Hervorheben:
2800 RPM ECM-Motor für Ventilator
,90 Watt ECM-Motor für Ventilator
,220 V ECM-Motor für Ventilator
Product:
Elektronisch kommutierte Motoren (ECM)
Frame Size:
95MM
Motor Type:
Direktantriebsblaser
Supply Voltage:
220 V
Enclosure Type:
TEAO ((Vollständig geschlossene Luft über)
Supply Frequency:
50 Hz
Thermal Overload:
mit einer Leistung von mehr als 50 W
Current:
0.85A
Phase:
Einzelphase
Output Power:
90W
Mounting:
Alle Engel
Speed:
2800 Rpm
Bearings:
Kugellager
Poles:
8P
Mounting Orientation:
Stamm montiert alle Engel
Shaft Diameter:
0.26" / 6,5 mm
Insulation Class:
Klasse B
Shaft Length:
1.49"/38mm
Rotation:
CW(SE)
Lead Length:
7.87" / 200mm
Max. Ambient Temperature:
40°C/104°F
Speed Control:
0-10V Drehzahlregelung
