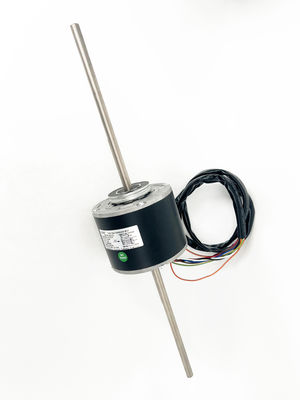

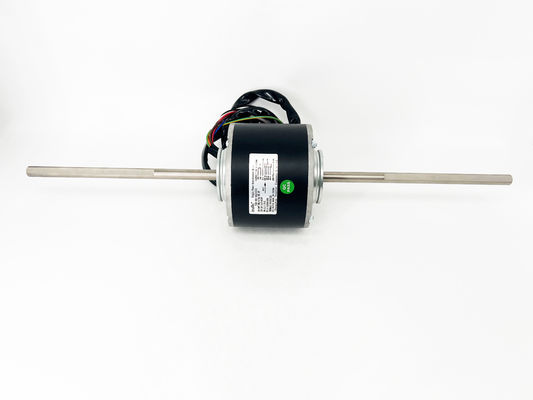

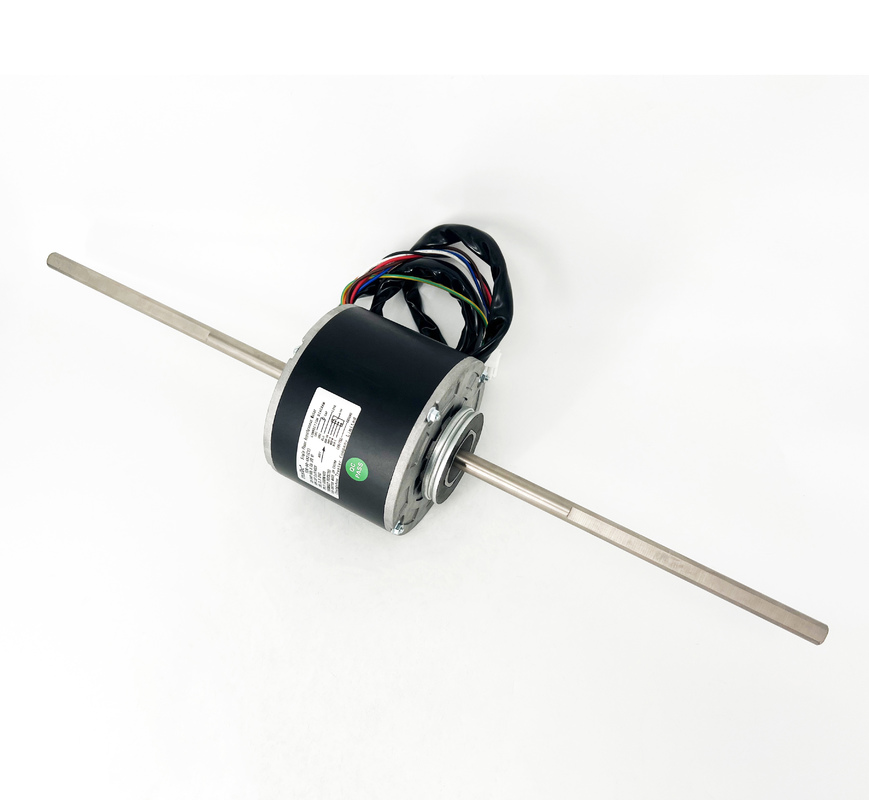

Name: Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner
Brand: Changzhou Trustec Company Limited
SKU: YSK-90-4A2-SGR
Price: 14.70 USD
Availability: InStock

Startseite Produkte Klimaanlagen-Ventilatormotor

Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner

Produktdetails:

Herkunftsort:	Jiangsu, China
Markenname:	trusTec
Modellnummer:	YSK-90-4A2-SGR

Zahlung und Versand AGB:

Min Bestellmenge:	200
Preis:	$14.70-15.50

Kontakt

Ausführliche Produkt-Beschreibung

Wechselspannung:	220-240V	Nennleistung:	90W
Bewertungsgeschwindigkeit:	1330 U/min/4spd	Rahmengröße:	123 mm
Motortyp:	Permanenter Split -Kondensator	Gehäuseart:	TEAO
Phase:	Einphase	Schachtdurchmesser:	12,7 mm
Schachtlänge:	570mm	Motorschalenlänge:	94mm
Versorgungsfrequenz:	50 Hz	Aktuell:	0.72A
Pole:	4p	IP -Bewertung:	42
Kondensator:	5uF/450V
Hervorheben:	123mm Frame Fan Coil Unit Motor , 570mm Shaft Length AC Motor , 12.7mm Shaft Diameter Air Conditioner Fan Motor

Fan Coil Unit AC Motor for Air Conditioner - 90W 1330RPM/4SPD 220-240V 50HZ

Features and Specifications

Product	Fan Coil Unit Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	123mm
Supply Voltage	220-240V
Supply Frequency	50Hz
Current	0.72A
Output HP	90W
Rated Speed	1330RPM/4SPD
Pole	4P
IP	42
Capacitor	5uF/450V
Insulation Class	Class B
Rotation	CW-LE
Shaft Length	22.4" / 570mm
Shaft Diameter	0.5" / 12.7mm
Motor Shell Length	3.7" / 94mm
Lead Length	51.18" / 1300mm
